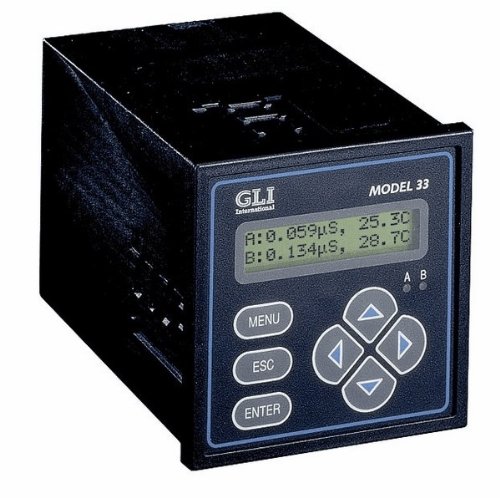

GLI Contacting Conductivity/Resistivity/TDS Analyzer, Panel-mount 1/4-DIN

GLI Contacting Conductivity/Resistivity/TDS Analyzer, Panel-mount 1/4-DIN Reviews

GLI Contacting Conductivity/Resistivity/TDS Analyzer, Panel-mount 1/4-DIN Function Feature

GLI Contacting Conductivity Controllers and Transmitters
Menu-driven display guides you through setup, calibration, operation, and test/maintenance functions
Interactive diagnosticscontinuously tests analyzer and sensor for proper operation
EEPROM memory retains settings during power outage
Panel-mount models have NEMA 4X front panels
Description: Contacting conductivity/resistivity analyzer, Pane
Model: C33 A 1 N N
Display: 2 x 16 character, backlit
Dimensions: 3.75"W x 3.75"H x 6.01"D
Part Number: AO-19065-20
Package Quantity: EACH

GLI Contacting Conductivity/Resistivity/TDS Analyzer, Panel-mount 1/4-DIN Overviews Product

Contacting conductivity/resistivity/TDS analyzers and transmitters are designed for ultrapure water, sanitary, boiler/condensate, and general-purpose applications. Unique Dry-Cal method lets you enter in the sensor's calibration constant to fully calibrate the analyzer. This is a convenient feature especially when calibration solutions are not accessible. Panel-mount model has NEMA 4X front panel: universal-mount models have NEMA 4X cast aluminum door and enclosure with our 1/2" conduit holes. Universal-mount models include bracket and stainless steel hardware for panel, surface and pipe mounting. Controllers have two independent inputs whihch can be independently configured to measure conductivity, resistivity, total dissolved solids, or a two sensor calculation such as % rejection, % passage, difference, or ratio. Transmitters have a single input and a single isolated 4 to 20 mA output that can be programmed for the selected measurement or temperature. The tranmitter can be wired in two-, three-, or four-wire hookup arrangement to meet your application requirements.
