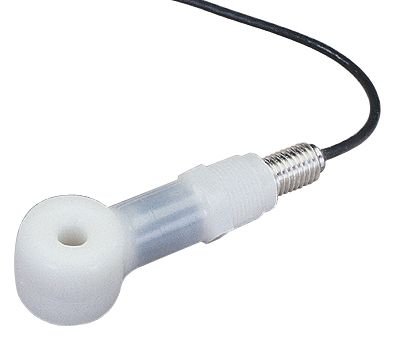

GLI 1000 Ohm electrodeless conductivity sensor, PP, 3/4

GLI 1000 Ohm electrodeless conductivity sensor, PP, 3/4 Reviews

GLI 1000 Ohm electrodeless conductivity sensor, PP, 3/4 Function Feature

GLI 1000 Pt RTD Electrodeless Conductivity Cells
Innovative technology eliminates polarization and electrode coating problems in harsh environments
Rugged, Low maintenance, non-fouling design
Available in polpropylene, PVDF, PEEK, or PFA wetted materials
Standard 20-ft integral cable
Type: Electrodeless conductivity sensor
Sensor material: Polypropylene (PP)
Temp range: -5 to 100 °C @ 100 psi
Manufacturer number: 37 2 5 E2T XX
Cable length: 20-ft, five conductor
Fitting: 3/4" NPT(M)
Model: 37 2 5 E2T XX
Mounting type: Insertion
Use with: 19065-24, -34, -44
Part Number: AO-19065-54
Package Quantity: EACH

GLI 1000 Ohm electrodeless conductivity sensor, PP, 3/4 Overviews Product

Sensors induce a low current in a closed loop of solution, then measures the magnitude of this current to determine a solutions conductivity. Problems such as polarization, oily fouling, process coating, and contamination will not affect the performance of the electrodeless sensor. Sensors are constructed of only one wetted material-choose from polypropylene (PP), PVDF, PEEK, or PFA. These nonconductive materials ensure the cell is electrically isolated from the process fluid. This eliminates ground loops which can affect accuracy. Sensors measure from 0 to 200 µS up to 0 to 2,000,000 µS at a maximum flow rate of 10 ft per second. Cells include automatic internal temperature compensation (32 to 257°F, 0 to 125°C), and a 20 ft, PTFE jacketed, five conductor integral cable rated up to 200°C.
